The Motorola CP100D radio is a 16 or 160 channel handheld unit that is ideal for educational institutions, hospitality, and retail businesses. The CP100D transmits using analog or digital* UHF or VHF frequencies, and can be programmed to work with other Motorola, Icom, and Kenwood analog or digital radios.
When choosing cost-effective two-way portable radios, you do not have to compromise features. The MOTOTRBO CP100D radios are a range of practical, entry-level analog or digital* radios for professionals wanting to communicate with greater ease and efficiency. Analog only models can be upgraded to support digital capabilities later if needed.
The affordable CP100D radio offers all the benefits of digital technology* – up to 35% longer talk-time, twice the voice capacity in a 12.5 kHz licensed channel, wider radio coverage, and superior audio. In digital mode, your MOTOTRBO radio provides clearer voice communications throughout the coverage area than analog radios, rejecting static and background noise.
* - Digital Features Only Applicable to Digital Models or Analog Models w/Digital Upgrade
Motorola CP100D radio highlights
- Digital* and analog transmissions
- 16 or 160 channels
- UHF (403-480 MHz) or VHF (136-174 MHz) frequency band
- 4 watts (UHF) or 5 watts (VHF) max power output
- 14 hours battery life and up to 20 with hi-cap battery
- 2 year Motorola warranty
Model numbers

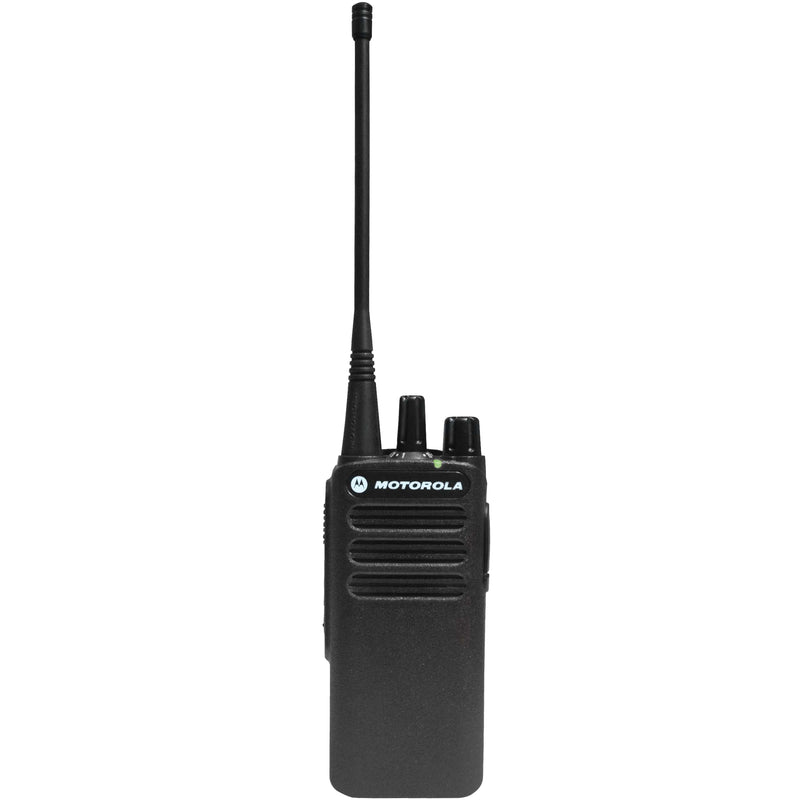

Analog & Digital UHF 16 Channel (No Display, No Keypad) - AAH87YDC9JA2AN

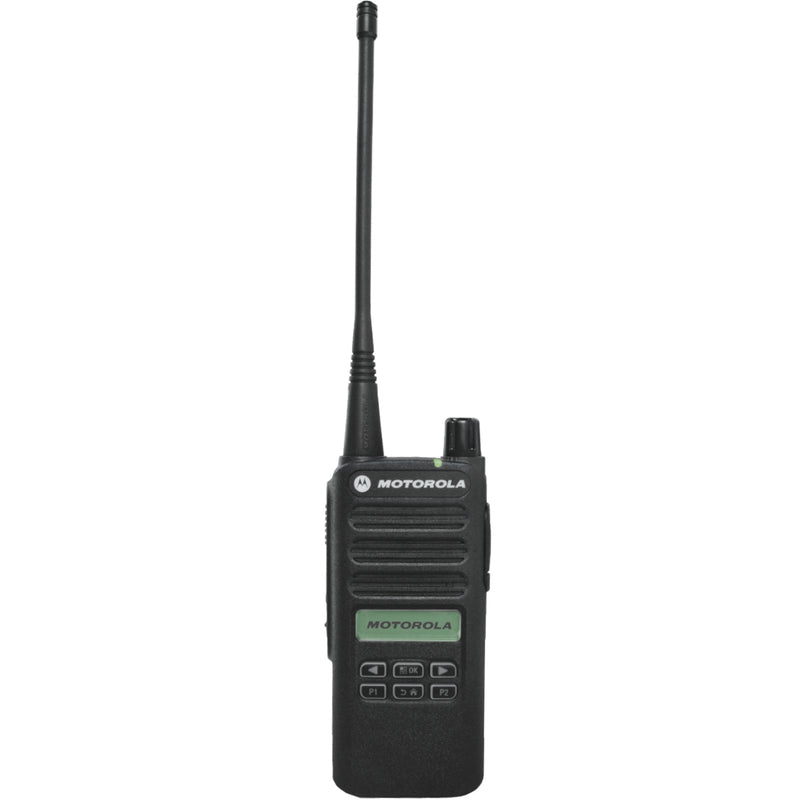

Analog & Digital UHF 160 Channel (Display, Limited Keypad) - AAH87YDH9JA2AN
Analog & Digital UHF 160 Channel (Display, Full Keypad) - AAH87YDF9JA2AN
Analog & Digital VHF 16 Channel (No Display, No Keypad) - AAH87JDC9JA2AN
Analog & Digital VHF 160 Channel (Display, Limited Keypad) - AAH87JDH9JA2AN
Analog & Digital VHF 160 Channel (Display, Full Keypad) -AH87JDF9JA2AN
Analog Only UHF 16 Channel (No Display, No Keypad) - AAH87YDC9JC2AN
Analog Only VHF 16 Channel (No Display, No Keypad) - AAH87JDC9JC2AN
Analog Only UHF 160 Channel (Display, Limited Keypad) - AAH87YDH9JC2AN
Analog Only VHF 160 Channel (Display, Limited Keypad) - AAH87JDH9JC2AN
Supported system technologies
Conventional analog
Conventional digital
Motorola CP185 Standard Accessories
| Battery |
PMNN4476 Li-Ion 1750 mAh |
| Charger |
PMPN4132 |
| Antenna |
UHF Whip - PMAE4016 (403-520 MHz)
VHF - NAD6502 (146-174 MHz)
|
| Belt Clip |
HLN9844 |
| Warranty |
2 Years |
Motorola CP100D Downloads
Specification Sheet
Free radio programming included with purchase
Motorola two-way radios arrive from the manufacturer with no programming. This means they will not work with your existing radios, and even each other (assuming you buy 2 or more), until we make them. Your sales rep can guide you through your specific radio programming needs at no additional cost (at time of purchase).
