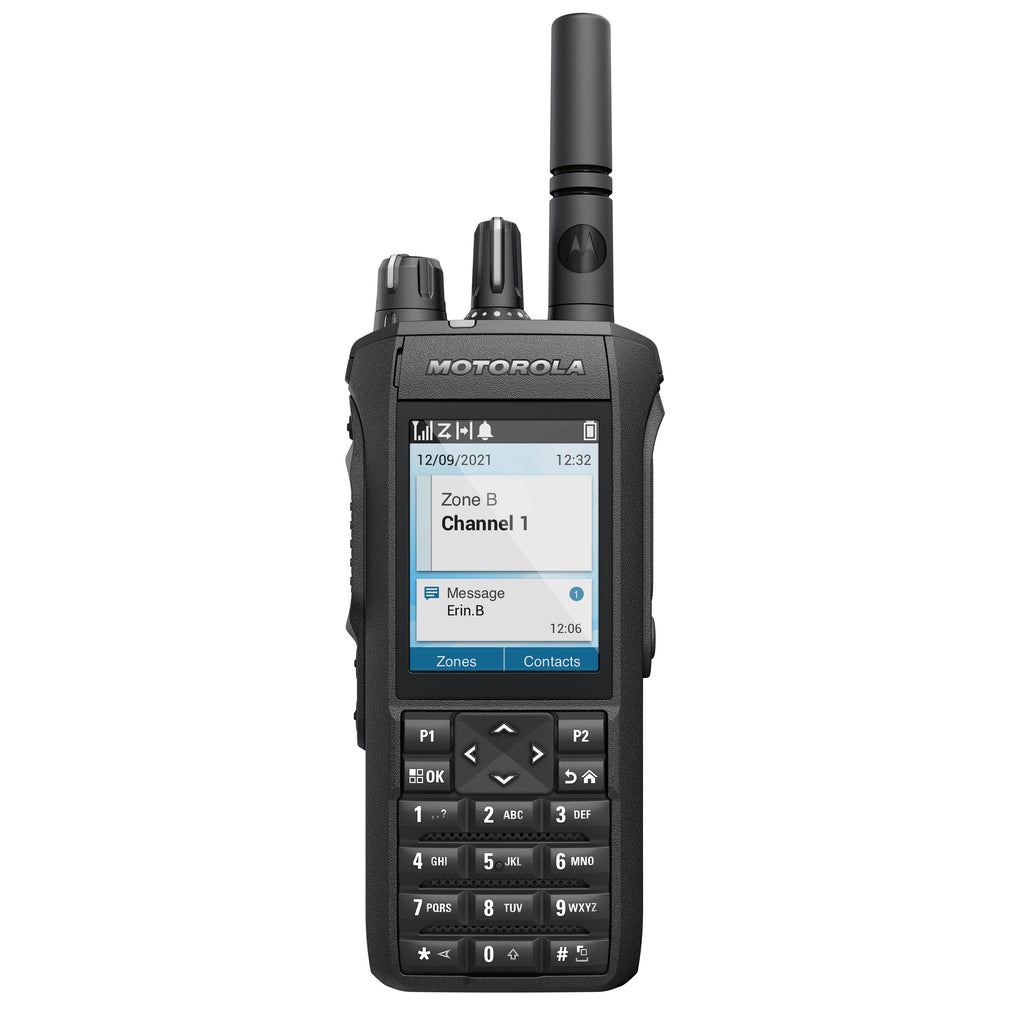

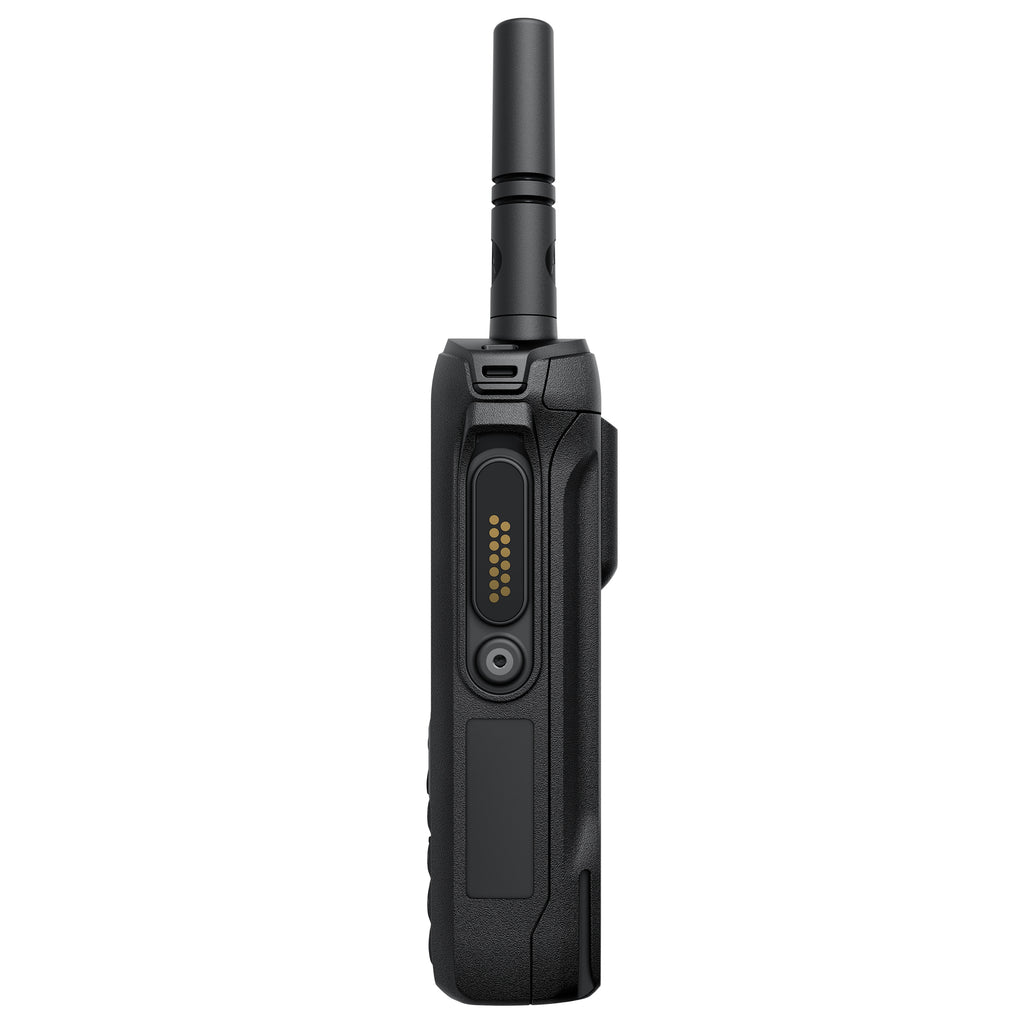

The Motorola R7 radio is a 64 or 1000 channel handheld unit that is ideal for public safety, oil and gas, mining, and manufacturing industries. The R7 radio is slated to replace the Motorola XPR 7550e as the top of the line commercial portable radio.
The R7 is a digital portable radio using UHF, VHF or 800/900 frequencies that offers game-changing audio capabilities in a rugged, future-ready device. Its advanced audio processing ensures that your communications are loud and clear, while its rugged construction is ready for harsh environments. Always be heard with a built in speaker capable of delivering a loudness factor of 102 phons, four times louder than a shouting conversation.
Each version of the R7 radio includes GPS, emergency button, Bluetooth 5.2, 3rd party applications and more. Connect to your existing fleet with the ability to connect to any Motorola infrastructure such as IP Site Connect, Capacity Plus, or Capacity Max.
Motorola R7 radio highlights
- Digital and analog transmissions

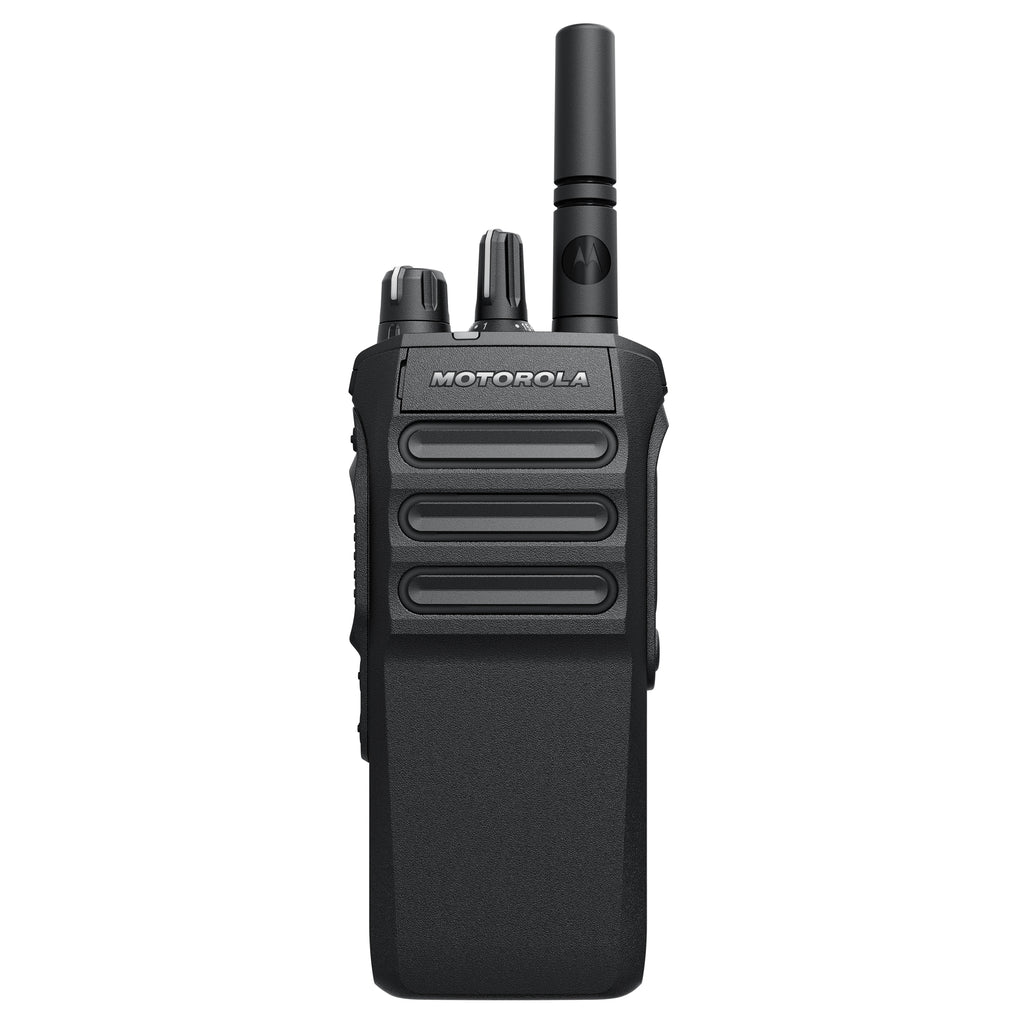

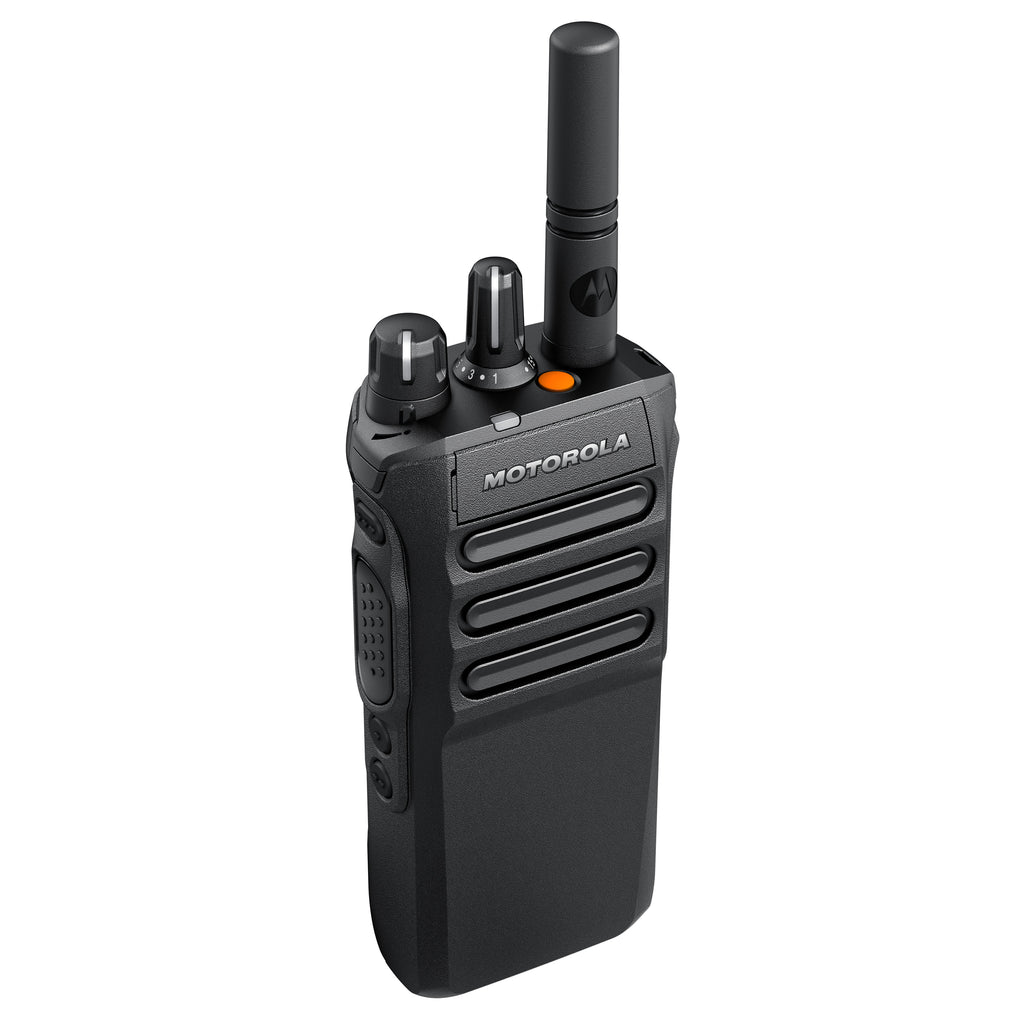

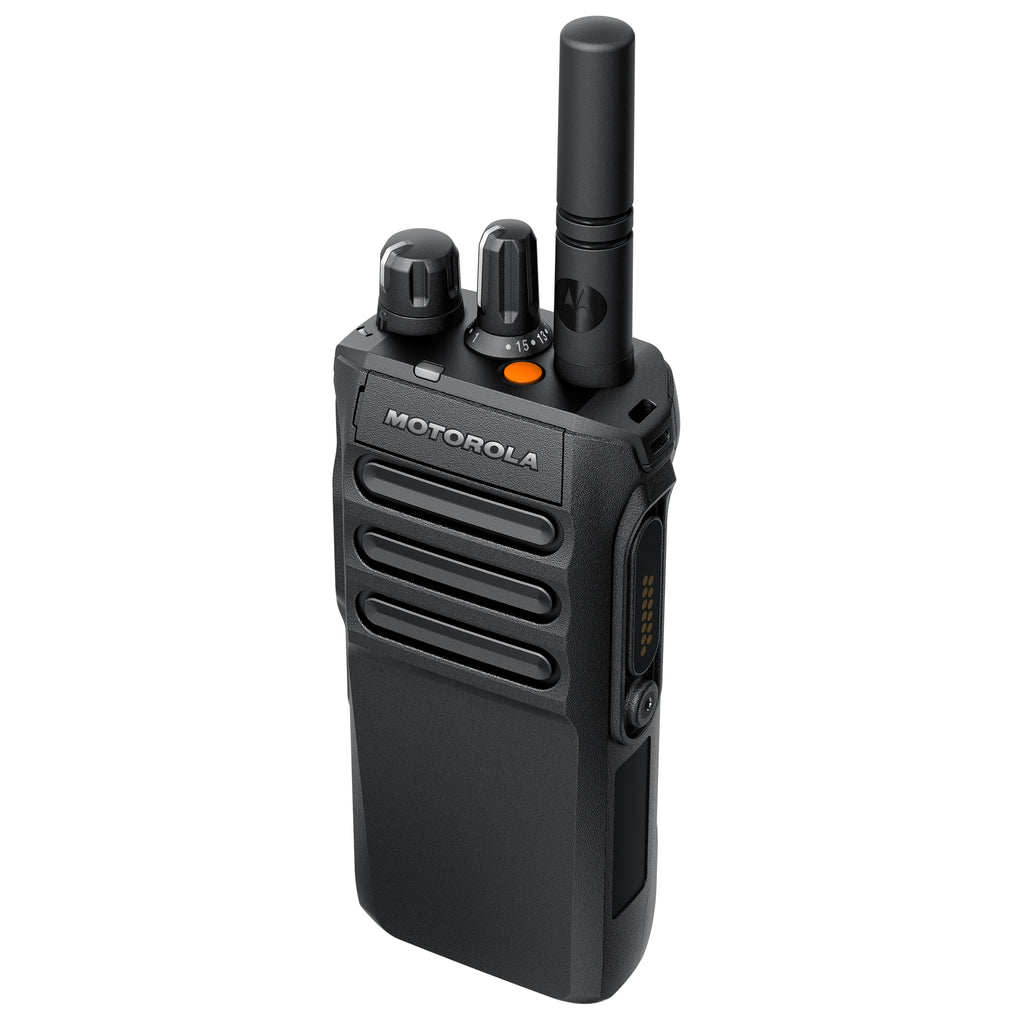

- 1000 channels (display) or 64 channels (non-display)
- UHF, VHF and 800/900 frequency bands
- 4 watts (UHF), 5 watts (VHF) and 2.5 watts (800/900) max power output
- IP68 water and dust proof
- Easy to manage 10 oz weight for non-display model (11 oz w/display)
- 19 hours of battery life with up to 25 using a high capacity battery

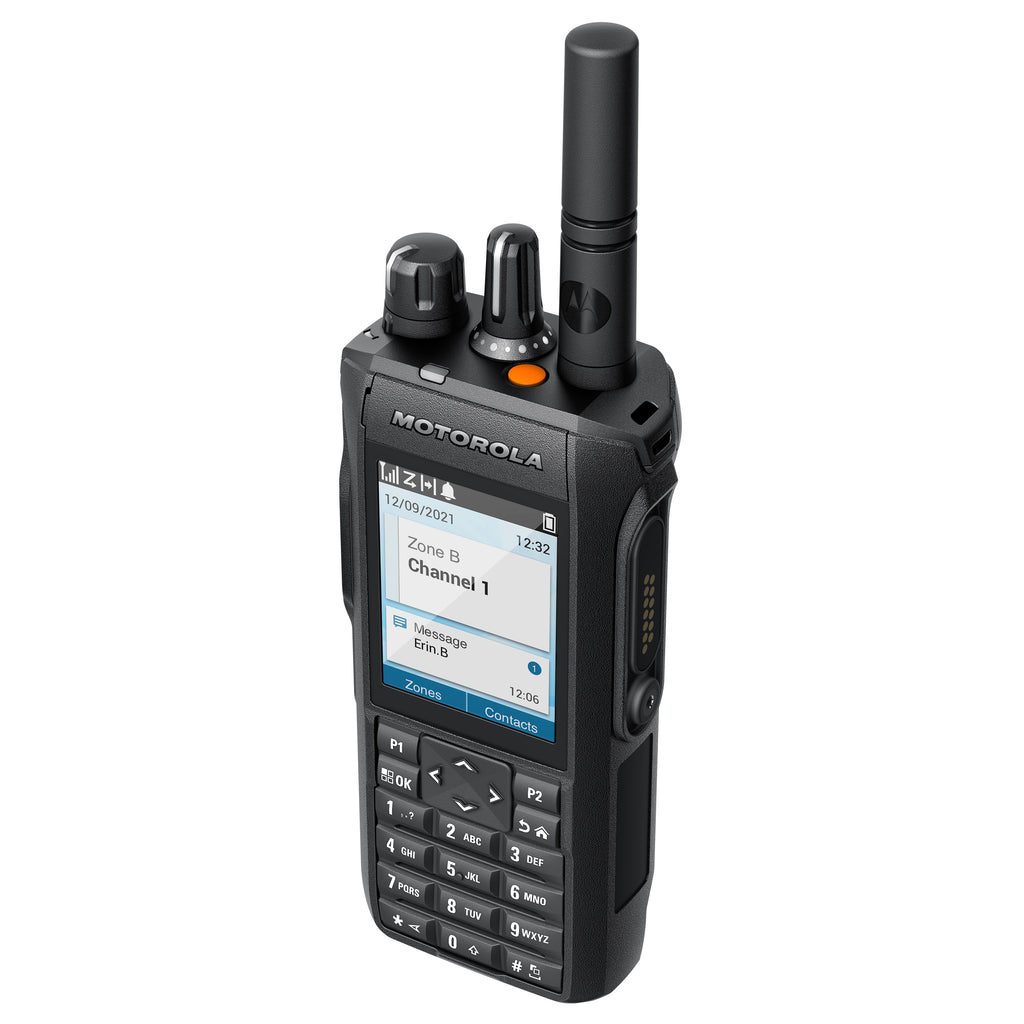

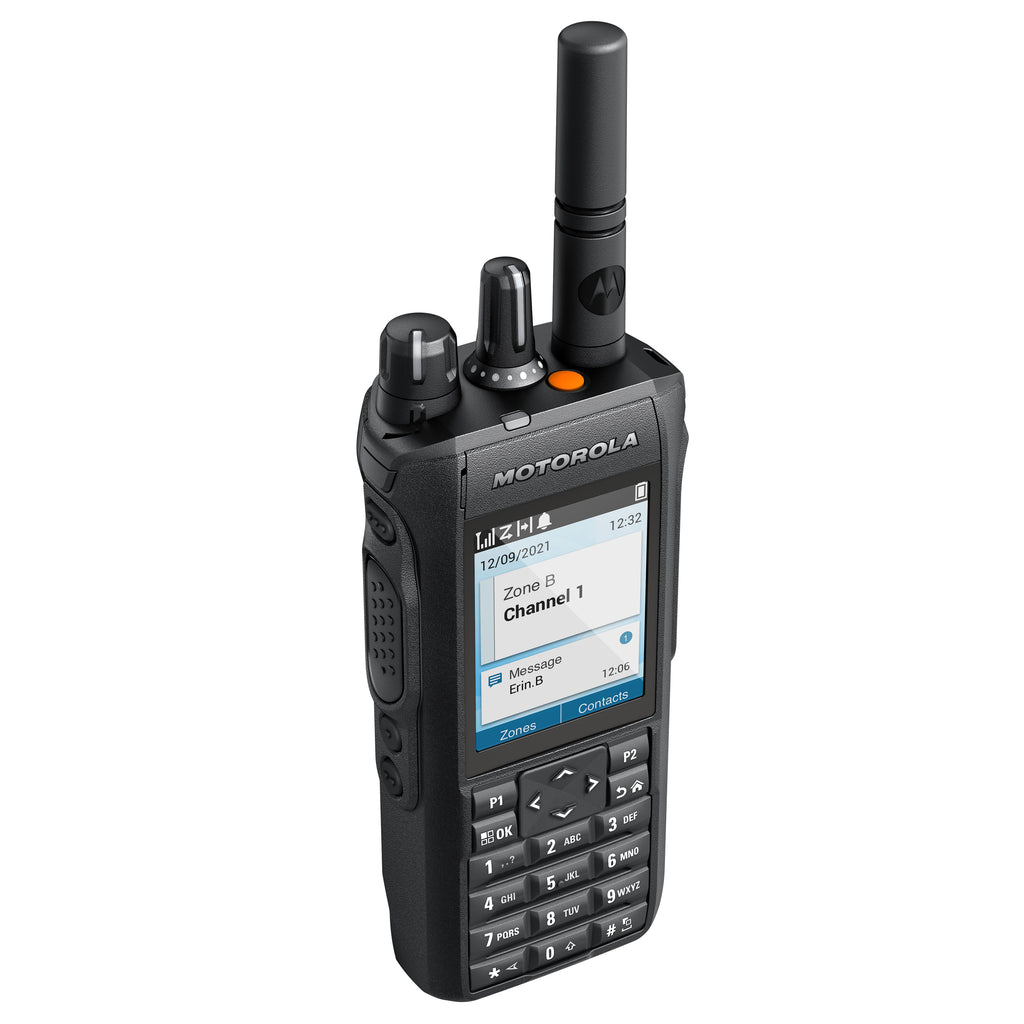

- Full color display w/full keypad

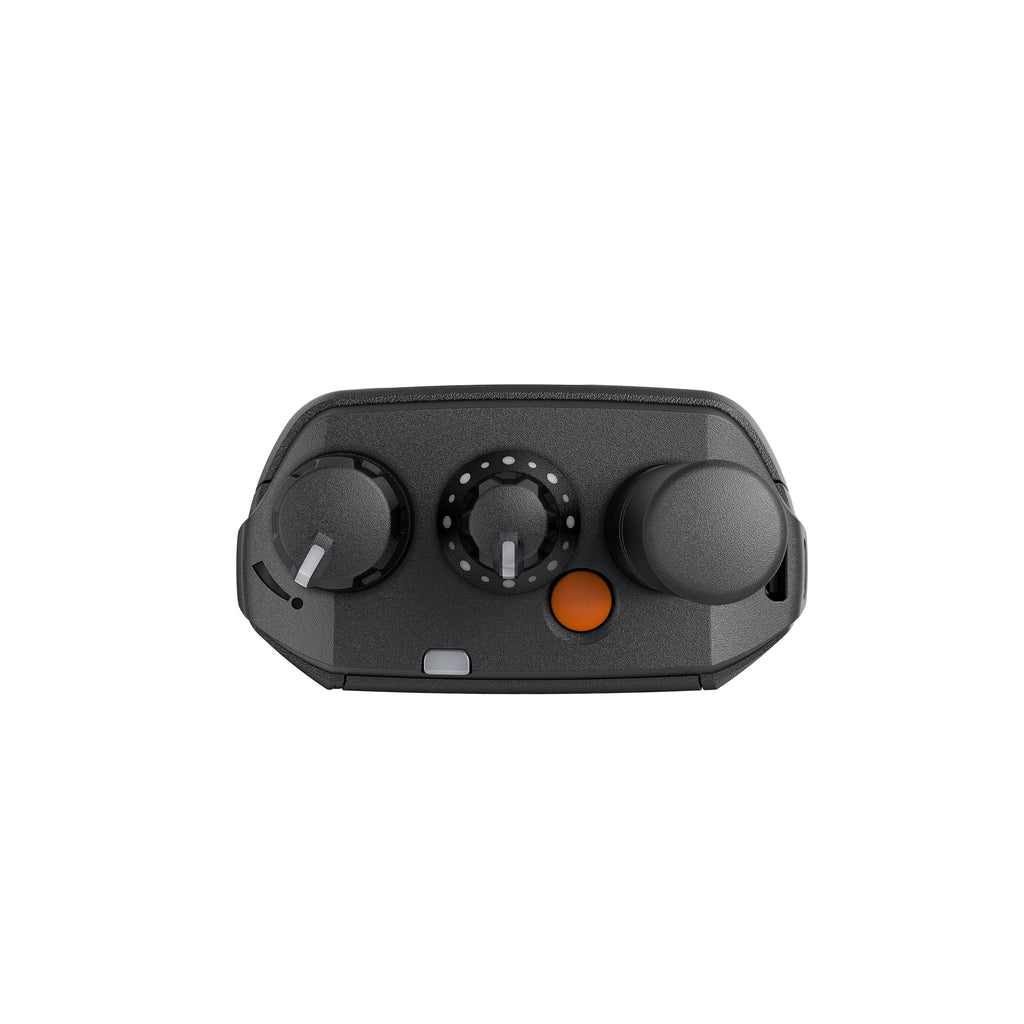

- Orange dedicated emergency button
- Intrinsically safe option (UL) available
- 5 year Motorola warranty
Model numbers
Display version
UHF Capable - AAH06RDN9WA1AN
UHF Enabled - AAH06RDN9RA1AN
VHF Capable - AAH06JDN9WA1AN
VHF Enabled - AAH06JDN9RA1AN
800/900 Capable - AAH06UCN9WB1AN
800/900 Enabled - AAH06UCN9RB1AN
Non-display version
UHF Capable - AAH06RDC9WA1AN
UHF Enabled - AAH06RDC9RA1AN
VHF Capable - AAH06JDC9WA1AN
VHF Enabled - AAH06JDC9RA1AN
800/900 Capable - AAH06UCC9WB1AN
800/900 Enabled - AAH06UCC9RB1AN
Supported system technologies
- Conventional analog/digital
- IP site connect
- Capacity plus
- Linked capacity plus
- Capacity max (enabled version add-on)
Included R7 accessories
| UHF Antenna |
PMAE4079 |
| VHF Antenna |
PMAD4118 |
| Capable Battery |
PMNN4807 |
| Enabled Battery |
PMNN4809
|
| Belt Clip |
PMLN4651 |
| Charger |
PMPN4576
|
| Accessory Cover |
PMHN4429
|
Motorola R7 Downloads
Spec Sheet | MOTOTRBO Brochure
Free radio programming included with purchase
Motorola two-way radios arrive from the manufacturer with no programming. This means they will not work with your existing radios, and even each other (assuming you buy 2 or more), until we make them. Your sales rep can guide you through your specific radio programming needs at no additional cost (at time of purchase).
